I've been tinkering with cars for a decade, and have replaced almost one-half of the parts on a number of Ford Rangers.
This article walks yous through the procedure of replacing your Ford Ranger's (or Mazda B-Series') side mirror. With these articulate, easy-to-follow instructions and high-quality photos, you'll have your truck'southward side mirror replaced in no fourth dimension.
Dmitriy Demidov | Unsplash
Replacing Your Side Mirror
A broken side mirror tin can be very annoying; it also poses a safety gamble to you and others while on the road. Luckily, replacing your Ford Ranger's side mirror is much easier than you might think. It's a job that can be done in about 30 minutes!
In this article, y'all will be guided (with photos) through the procedure of replacing your Ranger'southward side mirror. Here's what you'll larn:
- Tools you'll need to replace your side mirror
- Removing your door panel
- Removing your old side mirror
- Installing your new side mirror
- Replacing your door console

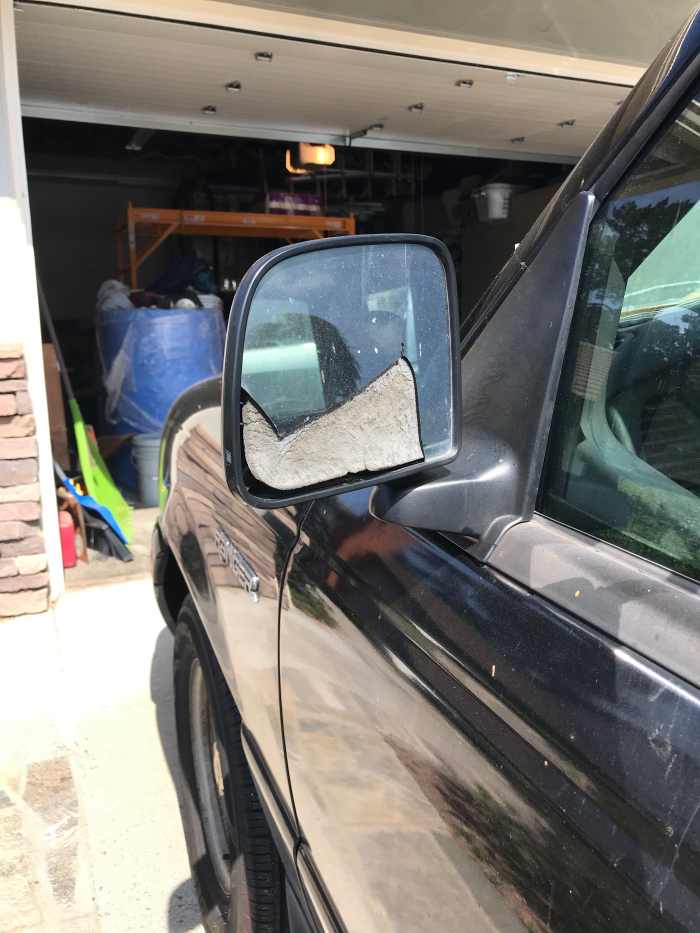

A broken driver-side mirror.
You'll demand the following tools to complete this repair:
- A Phillips screwdriver
- A Torx screwdriver (size may vary depending on year and model)
- A socket wrench
- A deep socket (size may vary depending on year and model)
For a 2002 Ford Ranger, you'll demand a T20 Torx screwdriver and an 11mm deep socket.
From left to right: a Phillips screwdriver, a Torx screwdriver, a deep socket, and a socket wrench.

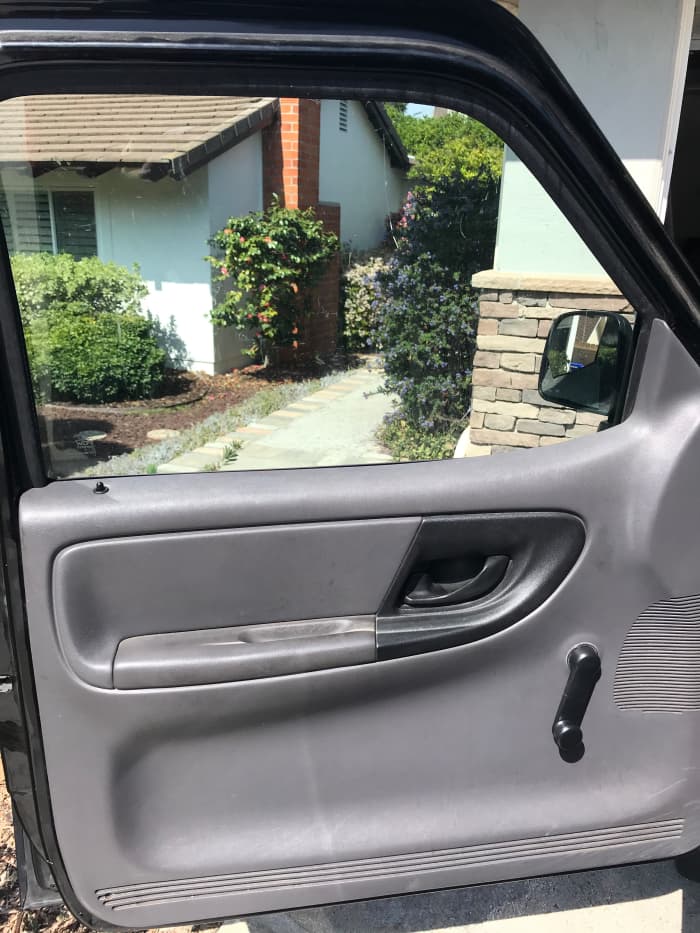

A shut-up view of a Ranger's door panel.
Step ane: Removing Your Door Panel
The very kickoff affair yous demand to do to supercede your broken side mirror is remove your door console. The following steps will walk you through this process stride past step.
Unscrewing the Phillips Caput Screws in Your Door Console
Begin by opening your door. You volition need to remove the inside panel to access the bolts that agree your side mirror in place.
Yous will notice Phillips head screws in the armrest as well as the lesser left corner of the door console. Unscrew both.
Scroll to Keep
Read More from AxleAddict
Once you take the screws out, be sure to put them in an easy-to-find location where they volition non exist misplaced. A good fashion to ensure this is to place them in a small bowl or jar.
Unscrewing the Torx Head Screw in Your Door Panel
Side by side, you lot will find the Torx head screw inside of your window crank handle. You will demand to pry off the outer casing of the window crank handle with a screwdriver. Y'all should not strength the casing too hard; low-cal to medium pressure should be sufficient.
Once you have removed the outer casing, move it to the side and y'all tin access the Torx caput screw with your Torx screwdriver. When you have removed the spiral, the creepo handle will come off. Identify the handle to the side in a safe identify.
Detaching Your Panel
At present you are gear up to remove the door console. There are tabs in the panel that fit into slots in the door, then you will need to lift upward on the panel to detach information technology. Brand sure you lot clear the lock pin as you lift the door panel. One time the lock pin is cleared, pull the panel abroad from the door and information technology should come off hands.
Step 2: Removing Your Sometime Side Mirror
Later on the panel is removed, you will run into a sparse, paper-like roofing on the metallic in the correct upper corner of your door. This is called a dust protector. Skin this away and put it in a safe place. Behind the dust protector you lot will see three holes. These holes provide admission to the 3 screws that hold your side mirror to your door.
At this point, you'll need your wrench with the deep socket attached. The deep socket volition allow you to achieve and loosen the basics through the access holes.
Loosen each nut and set them aside. When you become each nut completely loose, be sure to carefully pull them off so they residuum in the socket. You don't want them falling within your door! After each nut is off, remove your old side mirror and throw it abroad.
Step three: Installing Your New Side Mirror
Take your new side mirror out of its packaging and double bank check that there are no cracks or bug with it. The last thing you desire to practise is install a faulty piece.
Your side mirror volition have three threaded bolts attached to it. Insert these through the three holes left in the door from your previous mirror. While belongings the new mirror against the door, put a nut into the socket on your wrench and carefully tighten it onto the top commodities of the new mirror.
In one case this first nut is tight, you tin can let become of the mirror and put on the last two basics. Be sure to not over-tighten the basics! This can cause damage to your new mirror and/or create a hassle for you down the line should y'all ever need to remove the mirror again.
Step 4: Replacing Your Door Panel
Later on you cease putting on your new side mirror, return the dust protector to its original identify roofing the holes. If the adhesive is weak, y'all can lightly castor it with rubber cement to help it stick in place.
Next, set the door panel's tabs into their slots and push it back into place, making sure to get the lock pin back in its hole.
Finally, screw the Phillips head screws and the Torx head screw back into their places on the door panel and click the crank handle cover back into identify.
Groovy job! Y'all've just successfully replaced your Ranger'south side mirror!

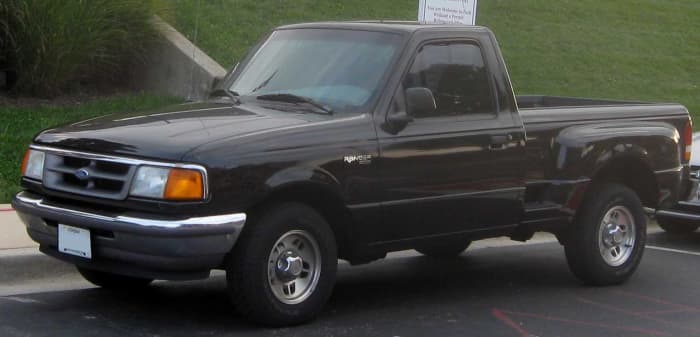

2002 Ford Ranger XLT with a new side mirror.
Wikimedia Commons
This content is authentic and true to the best of the writer'south cognition and is not meant to substitute for formal and individualized advice from a qualified professional person.
